[57] ABSTRACT
A
method of comparing two nominally identical entities each of which can be
represented by an assembly of arcs. comprising the operations of producing
images of the entities, analysing each of the images into an assembly of arcs.
Producing respective data sets representative of the arcs in the assemblies,
using the data sets to map one assembly of arcs onto the other, determining
differences in the mapping related to differences between the images. Comparing
the determined differences in the mapping between the images with statistically
determined differences in the mapping between a plurality of authentic images
to establish a criterion of an acceptable level of probability of identity
between the said two entities and providing an indication of the acceptance or
rejection of the proposition that the two entities
are identical.
6 Claims, 6 Drawing Sheets
1 IDENTIFICATION METHOD AND APPARATUS
The
present invention relates to the establishment of the relationship between two
entities, and more specifically to the detection of fraud or the verification
of the identity of a person. For the purposes of this specification, fraud is
defined as the use of a false representation to gain some advantage. Examples
are the forgery of signatures on cheques or other documents which form part of
a transaction, such as a bill of sale or a letter of credit, or seeking to gain
admission by means of false or stolen identification documents to premises or
property to which access normally is restricted. Particularly common types of
fraud are the obtaining of goods, services or money by means of forged
signatures on stolen cheques or credit cards. Large sums of money are lost annually
in this way by banks and other institutions. Security cards or passes often
have signatures on them also: in addition they may have a photograph of the
person to whom the pass
was issued.
Methods
have been proposed for verifying signatures by comparing the dynamics of the
writing of a purported signature with stored data representative of the
dynamics of the writing of an authentic reference signature. See, for example,
our co-pending application GB 2.252.391A; EP application 0 392 159 and U.S.
Par. No. 4,701.960. Also, methods have been proposed for comparing the shape of
a purported signature after it has been written with that of a stored authentic signature. See, for
example. EP application 0.483.391 and EP 0 127 478B.
Also
it has been proposed to provide human face recognition by digitising images and
comparing them using pattern recognition techniques. However it is believed
that no such system is available for use in day-to-day circumstances.
According
to the invention in one aspect there is provided a method of comparing two
nominally identical entities each of which can be represented by an assembly of
arcs, comprising the operations of producing images of the entities, analysing
each of the images into an assembly of arcs, producing respective data sets
representative of the arcs in the assemblies, using the data sets to map one
assembly of arcs onto
the other, determining differences in the mapping related to differences
between the images. comparing the determined differences in the mapping between
the images with statistically determined differences in the mapping between a
plurality of authentic images to establish a criterion of an acceptable level
of probability of identity between the said two entities and providing an
indication of the
acceptance or rejection of the proposition that the two entities are identical.
The
operation of using the data sets to map one entity upon the other may comprise
reproducing representations of the assemblies of arcs from the data sets and
mapping one set of reproduced arcs upon the other in such a manner as to
maximize the correlation between the representations of respective arcs in the
assemblies of arcs while simultaneously minimizing the elastic distortions in
the mapping between the
representations of the arcs.
The
mapping between the plurality of authentic images so produce the statistically
determined differences between the authentic images to establish the criterion
of an acceptable level or probability of identity between the two entities is
done in the same manner as that between the two assemblies of arcs.
According
to the invention in a second aspect, there is provided an apparatus for
comparing two entities and providing an indication of the probability of the
identity of the two entities, wherein there is included means (73) for producing electronically an image in the
form of an array of binary pixels of one entity to be compared with another
entity an image of which also has been electronically produced in the form of
binary pixels, means (74) for producing
from the pixels related to the image of the first entity a data set related to
arcs contained in the pixels related to the image of the first entity, a data
set store (71) containing a data set related to arcs contained in the pixels
corresponding to the image of the second entity, means (75) for reproducing the
arcs represented by the respective data sets and mapping the reproduced arcs
relating to one image upon those relating to the other and determining the
differences there between. means (77)
for comparing the determined differences between the two images with a standard
set of differences determined statistically by repeated comparisons between
images of one of the entities so as to provide a criterion of an acceptable
level of probability of identify between the entities, and means for providing
an indication of the acceptance or rejection of the proposition that the two
entities are identical.
According
to the invention in another aspect there is provided an apparatus for comparing
two entities and providing an indication of the probability of the identity of
the two entities wherein there is included means for electronically scanning
images of the two entities and providing arrays of binary pixels related
thereto, means for scanning the arrays of pixels and deriving data sets
relating to arcs contained in respective arrays of pixels, means for
reproducing the arcs represented by the data sets, and mapping the
reproduced
arcs relating to one image upon the other and
determining the differences there between. means for comparing the
determined differences between the two images with a standard set of
differences determined statistically by repeated comparisons between images of
one of the entities
so
as to provide a criterion of an acceptable level of probability of identity
between the two entities, and means for providing an indication of the
acceptance or rejection of the proposition that the two entities are identical.
The
entities to be compared may be signatures or images of faces or other features of a person which can be resolved into
a set of arcs, such as ears. The invention will now be described, by way of example
with reference to the accompanying drawings. in which
FIG.
1 illustrates how a set of parameters defining an arc can be derived.
FIG. 2 illustrates how best fitting
lines to a sequence of pixels representative of a portion of an arc can be
derived so as to provide a data set
related to the arc.
FIG.
3 shows a scanned image of a signature to provide an image of the signature in
the form of sequences of binary pixels.
FIG. 4 shows best fitting lines to arcs
contained in the signature of FIG. 3.

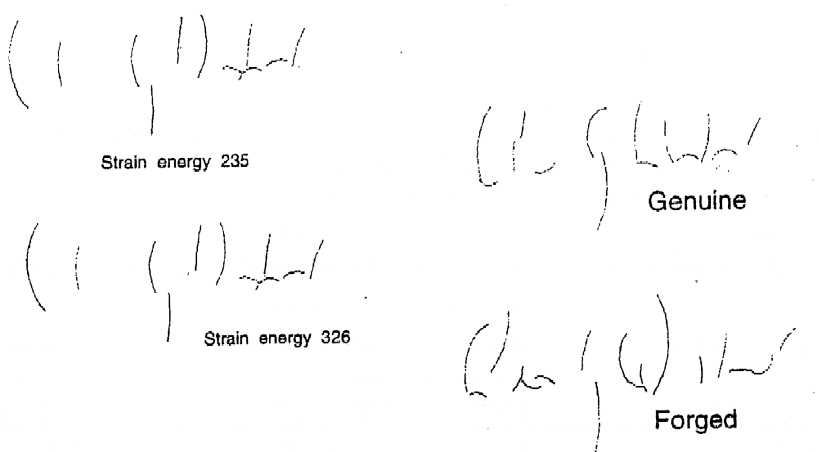

FIG. 6 shows a comparison between arcs extracted from a given signature compared with an authentic second writing of the same signature. together with a second comparison between arcs generated from the same signature and a forgery of it.

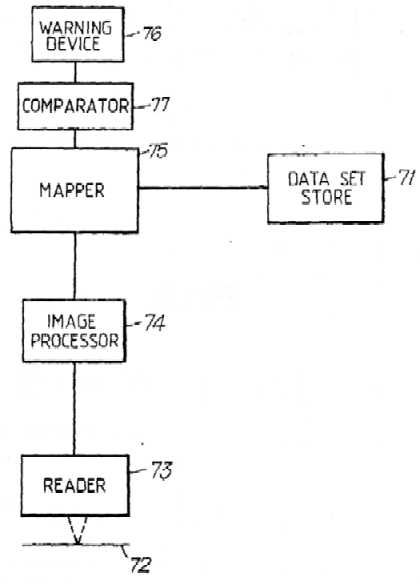

FIG. 7 shows a block diagram of a system
embodying the invention for comparing two nominally identical entities.
FIG. 8 shows a detail from a drawing by
Matisse.
FIG.
9 shows how a person viewing a face concentrates his attention on selected
regions of that face.
FIG. 10 shows a gradient image generated
from a video camera image of a subject.

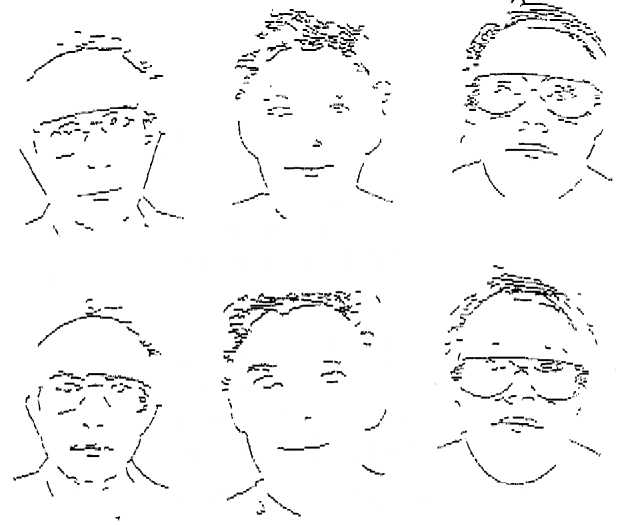

FIG. 11 shows two arc images of each of
three subjects produced by the method of the present invention; and
FIG. 12 shows a block diagram of a second
system embodying the invention for comparing two nominally identical entities.
Referring to the drawings, FIG. 1 shows
how a circular arc can be characterised by five variables. Two are the position
(x.y) of its central point, a third is the angle (Q) of the tangent to the arc at the point
(x,y), a fourth is the curvature of the arc, which may be positive or negative
depending upon which side of the arc its centre of curvature (x.y) lies, and
the fifth is the chordal length of the arc.
A process for extracting an arc from a
signature or from an image of a face is illustrated in FIG. 2. which shows a
section from a signature magnified to show the individual black pixels recorded
during a scan of the signature or image. A pixel with co-ordinates (x0,
y0) is chosen at random and a box having a size about twice the
thickness of the line represented by
the pixels and centred upon the pixel (x0, y0) is
constructed around it. A best fit straight line to the pixels in the box is
found using standard analytical techniques. This line defines a first segment
of an extracted arc, and enables an estimate to be made for the position (xnew,
ynew) of a similar box including another portion of the line
represented by the pixels. A best fit straight line to this portion of the line
represented by the pixels yields another possible segment of the arc. This new
best fit straight line is accepted as forming part of the arc if the following
criteria are satisfied:
l)The new line contains at least enough
pixels to be a line of the expected width.
2) The new line joins onto the previous
one with a displacement of less than half the line width.
3) The new line has an angle with
reference to the previous one which is consistent with a curve of constant curvature to
within some pre-determined value. ±10 degrees being a suitable range.
If any of the best fitting straight lines
is accepted as representing part of an arc, then the corresponding pixels are
removed from the image so as to prevent their use a second time. As successive
fitting operations are carried out, the representation of the original arc is
extended until one of the
above-mentioned criteria fails to be satisfied. either because the arc
has come to an end or because its curvature has changed markedly. The arc
representation, or extraction process is then carried out in the reverse
direction. If the extracted arc exceeds a pre-determined length, then its
parameters, as given above, are recorded and the process is repeated on another
part of the image of the signature or face.
FIG. 5 shows the best fitting lines found
from the image of a signature shown in FIG. 3, and FIG. 6 shows a set of arcs
extracted from the best fitting lines of FIG. 5. together with the original of
the signature shown in FIG. 3. It can be seen that the set of extracted arcs
reproduces to a considerable extent the original signature.
FIG. 6 shows a comparison between a set of
arcs extracted from a signature and a set of arcs extracted from another
signature written by the same person. FIG. 6 shows also, a comparison between
the sets of arcs extracted from the original set with those extracted from an
attempted copy of the signature written by another person. As can be seen, the
difference between the two sets of extracted arcs is very marked in the second case.
It can be seen also that, even in the
case of two authentic signatures. there is a considerable difference between
the corresponding sets of arcs. In a practical system for verifying signatures
on documents such as cheques. it is necessary to be able to accommodate such variations.
This is best done by establishing some level of difference which corresponds to
an acceptable level of probability that two signatures were written
by the same person. The method of elastic matching described in our co-pending
application GB 2.252.391A a1so can be used in the present invention.
Referring to FIG. 7. which shows a system
for verifying signatures on cheques. an authentic signature held by a
cheque-issuing institution is processed as described above and the data set
corresponding to its extracted arcs is held in a store 71. A cheque 72. the
signature upon which is to be verified is scanned by a reader 73. The reader 73
may be adapted to provide digital output signals corresponding to an array of
pixels, or the image processor 74 may be adapted to carry out the appropriate
digitisation of the output signals from the reader 73. In the former case, a
suitable form of reader is a video camera of the charge-coupled device type.
The output signals from the reader 73 are fed to an image processor 74 in which
they are processed to provide a second data set corresponding to the arcs
contained within the signature
to be verified. The data sets from the image processor are then applied to a
mapper 75 in which the two data sets are matched as described previously and
signals related thereto are applied to a comparator 77 which contains
information relating to expected variations in data relating to repeated
authentic signatures. and the probability of identity between the two
signatures assessed. In the event that
a signature is judged to have a probability of being fraudulent which exceeds a
pre-determined amount, then a warning device 76 is activated.
As in the method of verifying signatures
dynamically disclosed in patent application 2.252,591A the comparator 75 seeks
to find the best mapping array. link (ib) from arcs ib in
the bank-held sample signature to arcs a in the cheque signature.
The correlation between the arcs can be
evaluated readily. As an example, the correlation will be maximised when the
following function of the arc parameters V(i,j) for each arc i and variable j
is minimised.
Ecor = Si=1,narcs S j=3,5 W(j)q,[vbank(i,j) - vchequelink(i),j]
Where Ecor is a correlation
energy, the values of j arc are ranges of the arc variables of angle. curvature
and length. This function ensures that arcs with similar orientation, curvature
and length will give a low correlation energy. The coefficients w(0) are
derived empirically through a learning process to be those which best
discriminate between authentic and forged signatures.
A distortion energy Edist is
defined for a set of linkages link(i). Edist is analogous to the
elastic energy of a rubber sheet which
is stretched from the (x, y) positions in the bank sample signatures to the
corresponding (x, y) positions in the image of the signature under test to which
they are linked at a given moment. In general. the elastic energy terms between
all the arcs in the signatures will have to be calculated.
The distortion energy is given by the equation
Edist
= Si=1,narcs S j=1,narcs, i<>j { [ xbank(i) - xchequelink(i)
- xbank(j) + xchequelink(j) ]2
+ [ybank(i) -
ychequelink(i) - ybank(j) + ychequelink(j) ]2
}
The minimum distortion energy clearly will
occur when all the links are made from
each arc in the bank sample signature to corresponding arcs in the cheque
signature which have the correct x and y direction spatial relationships. both
in sign and magnitude. Provision must be made for links to "dangle"
if there is no arc in the signature on the cheque to which a given arc in the
bank sample cheque should be connected. In practice, not all sets of arcs need
to be included in the summation, but merely a number of those nearest to a
given arc. A suitable number of neighbouring arcs to be included is three. The
set of linkages which give the minimum value of can be found by one of a number of methods, including exhaustive
search, gradient descent or Monte Carlo methods.
When the maximum correlation and minimum
distortion energies characteristic of a particular pair of signatures have been
determined, the processes of signature verification or personal identification
can be performed by one of several standard methods. For example. from a
database of appropriate authentic-authentic and authentic-forged signature
pairs, clusters corresponding to the two classes, authentic or
forged
can be identified in the two-dimensional space formed by the correlation and
distortion energies. By fitting Gaussian probability distributions to each
class, an unknown signature pair can be identified by the class to which it is
nearer when it is weighted appropriately by the relevant standard deviations.
If it is desired to identify a person from
a signature. The correlation and distortion energies of this signature when
mapped to nil of a possible class of candidates could be determined. The pair
having the lowest energies could identify the unknown signature.
The above technique also can be used to
identify a person by comparing a video image of his face with a stored image.
The stored image may be held in a data bank or be a photograph on a security
pass or similar document. Referring to
FIG. 8. it can be seen that a human face can be delineated by a relatively
small number, perhaps twenty, of curved lines, albeit with subtly varying
curvatures. Each of these lines can be considered as a sequence of circular
arcs.
FIG. 9 indicates how this ability simply
to delineate a face comes about. As can be seen from FIG. 9. the eyes of a
person looking at another spend most of their time focused on the regions of
the eyes, nose and mouth. Therefore as long as enough lines are present to
encapsulate these features and the overall shape of the outline of the face,
that is all that is required to produce a recognisable image of the face.
The present invention makes use of this
phenomenon. A picture of an individual is produced. either photographically or
by means of a video camera, and reduced to a gradient image. as shown in FIG.
10, by means of the operator G(i,j) = { [f(i,j) -
f(i,j-1)]2 [f(i,j) - f(i,j+1)]2
}1/2 where the function f(i,j)
represents the original image. As can be seen, this is constituted by a set of
pixels which form lines, albeit of varying width. These are reduced to lines of
constant width by choosing a point in one of the lines, surrounding it by a box
of some resolution value 2R0 (Of the order of 10) such as to
encapsulate the broader arcs in the gradient image. The centre of gravity (i0,
j0) of that part of the gradient image and its slope S(i0,
j0) are evaluated by a standard regression technique. such as is
well known in the field of image analysis. By this means a series of arcuate
lines of constant width is derived.
The resulting derived gradient image is
then subjected to the same processing routine as was used in connection with
signatures. FIG. 11 shows pairs of extracted arc images for three subjects.
About 60 arcs occur in each image. It can be seen that this is quite sufficient
for the human eye to recognise and compare two images of the same face.
For a non-human comparison. however. for example a security system comparing a real-time
video camera image of a person with a stored image, the situation is the same
as for the signature verification situation discussed above and exactly the
same matching process can be used.
Referring to FIG. 12. an apparatus for
enabling a person to be identified by
comparing a directly-derived image of their face 121. in whole or in part. with
a second image of known provenance comprises, a video camera 122. preferably of
the charge-coupled device type which produces an
in the form of pixels. The output from the video camera 122 is fed to an image
processor 123 which carries out the operation of reducing the photographic type
image produced by the video camera 122 to the gradient and line images.
previously referred to, as well as carrying out the extraction of arcs and
corresponding data sets, as in the apparatus described with reference to FIG.
7. The data set store 71 is replaced by a second video camera 124 similar to
the camera 122 arranged to scan an image on an identification document 125. A
second image processor 126 is arranged to carry out the same operations as the
image processor 123. The outputs from the image processors 123and 126 are
applied to a mapper 127 corresponding to the mapper 75 and the output from the
mapper 127 is applied to a comparator 128. as before. The output from the
comparator 128 is applied to a warning device 129 which may include an
automatic latch (not shown) for a door or a security barrier. If desired. the image processor 126 can be
omitted and the image processor 123 used in multiplex fashion. Also, the second
video camera and image processor can be replaced by a previously prepared data
set store as in the apparatus described with reference to FIG. 7.
1. A method of comparing two nominally
identical entities a first one of which is designated as a reference entity.
comprising the operations of producing an image of the reference entity.
extracting there from an assembly of arcs related to linear features of the
image of the reference entity producing a first data set representative of the
assembly of arcs extracted from the image of the reference entity. storing the
first data set, reproducing from the stored data set a plurality of the
assemblies of arcs extracted from the image of the reference entity, mapping
the reproduced assemblies of arcs upon one another to establish a standard
level of differences between the assemblies of arcs extracted from the same
image so as to establish a criterion of an acceptable level of probability of
identity between two entities being compared. producing an image of the second
entity. extracting there from an assembly of arcs related to linear features of
the image of the second entity. producing a second data set representative of
the assembly of arcs extracted from the image of the second entity. using the
first and second data sets to reproduce assemblies of arcs extracted from the
images of the reference and second entities. mapping said last mentioned
reproduced assemblies one upon the other and determining the level of
difference there between. comparing the determined level of difference between
the assemblies of arcs extracted from the images of the reference and second
entities with the standard level of difference between the repeated mappings of
the assemblies of arcs extracted from the reference entity image to establish
the level of probability of identity between the entities. and providing an
indication of the acceptance or rejection of the proposition that the two
entities are identical.
2. A method according to claim 1 wherein
the mapping between the plurality of assemblies of arcs extracted from the
image of the reference entity to establish the standard level of differences
between the said assemblies to establish the criterion of an acceptable level
of probability of identity between the two nominally identical entities is done
in the same manner as that between the two assemblies of arcs related to linear features of the
images of the two nominally identical entities.
3. A method according to claim 1 wherein
the operation of mapping one set of reproduced arcs upon the other is carried
out in such a manner as to maximize the correlation between the representations
of respective arcs in the assemblies of arcs while simultaneously minimizing
elastic distortions in the mapping between the representations of the arcs.
4. A method according to claim 1.
wherein the assembly of arcs is extracted from each image by scanning the image
to produce a plurality of pixels. determining whether a pixel chosen at random
contains an element of a linear feature of
the image and if it does recording the coordinates of the center of that pixel, constructing
about the pixel a first area having a size approximately equal to twice the
thickness of an expected linear feature of the image and centered upon the
pixel, determining a best fit straight line to pixels in the first area
containing elements of a linear feature of the image, the said straight line
defining a first segment of an extracted arc estimating there from the
coordinates of the center of a similar area adjacent the first area and
containing another segment of the linear feature of the image represented by
the pixels containing elements of the linear feature of the image, determining
the best fit straight line to the elements of the linear feature of the image
represented by the pixels in the second area to yield a possible second segment
of the extracted arc, determining:
a) whether the possible second
segment of extracted arc is of similar width to the first segment of extracted
arc.
b) whether the possible second
segment of extracted arc joins onto the first segment with a transverse
displacement of less than half a line width and
c) whether the possible second
segment of extracted arc joins the first segment of extracted arc at an angle
with reference to the first segment of extracted arc which is within a
predetermined value so that the segments of extracted arc at least approximate
to an arc of constant curvature:
accepting the best fit straight line as
representing part of an extracted arc if the above criteria are satisfied,
repeating the arc extraction operation in one direction until the above
criteria no longer are satisfied, repeating the arc extraction operation in the
reverse direction until the above criteria also no longer are satisfied,
temporarily storing data generated during the determination of the possible
segments of the extracted arc, determining whether the length of the possible
extracted arc exceeds a predetermined value and if it does. determining the
coordinates of the center of the extracted arc. the angle of the tangent to the
extracted arc at its center the curvature of the extracted arc and the chordal
length of the extracted arc, storing these parameters. deleting the pixels from
the image. repeating the arc extraction operation in other parts of the image
until the entire image has been processed. and storing the above parameters of
the extracted arcs to form the said data set relating to the image.
5. A method according to claim 1 wherein
the entities are signatures the first of which is known to be authentic.
6. A method according to claim 1. wherein
the entities to be compared are images of at least portions of faces and there
is included the operation of reducing the images to assemblages of curved lines
related to localized variations in the shape of regions of the said portions of
faces.
Last updated 7/11/2002
